Overview
1.1 Our self-healing low-voltage shunt capacitors utilize advanced metallized film as a material and incorporate advanced domestic and international production processes. They are manufactured in strict accordance with national standards. They are primarily used in low-voltage power grids to improve power factor, reduce line losses, and improve grid quality.
1.2 Our company is a leading manufacturer of self-healing low-voltage shunt capacitors, boasting advanced equipment, strong technical expertise, and reliable quality.
1.3 Implementation Standards: GB/T 12747.1-2017, GB/T 12747.2-2017
Product Features
2.1 Advanced production equipment, high-quality imported raw materials, and unique craftsmanship fully guarantee product quality.
2.2 Using metallized polypropylene film as the dielectric material, these capacitors are compact, lightweight, and aesthetically pleasing. Localized dielectric breakdown caused by overvoltage can be rapidly self-healed, resuming normal operation and significantly improving reliability.
2.3 The unique design offers low loss, minimal heat generation, low temperature rise, long service life, and excellent energy efficiency, ensuring the product's adaptability to high ambient temperatures and environments subject to significant system voltage fluctuations.
2.4 Built-in self-discharge resistors and overpressure protection devices. The built-in discharge resistors automatically discharge any remaining energy after the capacitor is disconnected. If a capacitor failure occurs, the protection device immediately disconnects the power supply to prevent further malfunction.
2.5 The capacitors are impregnated with a vacuum impregnant and undergo high-temperature baking to ensure no oil leakage or failure due to dielectric loss during use.

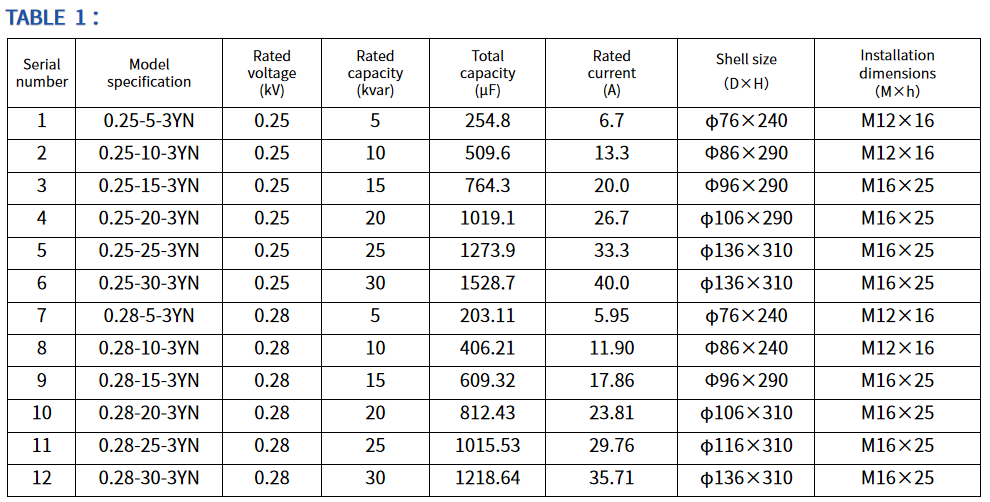

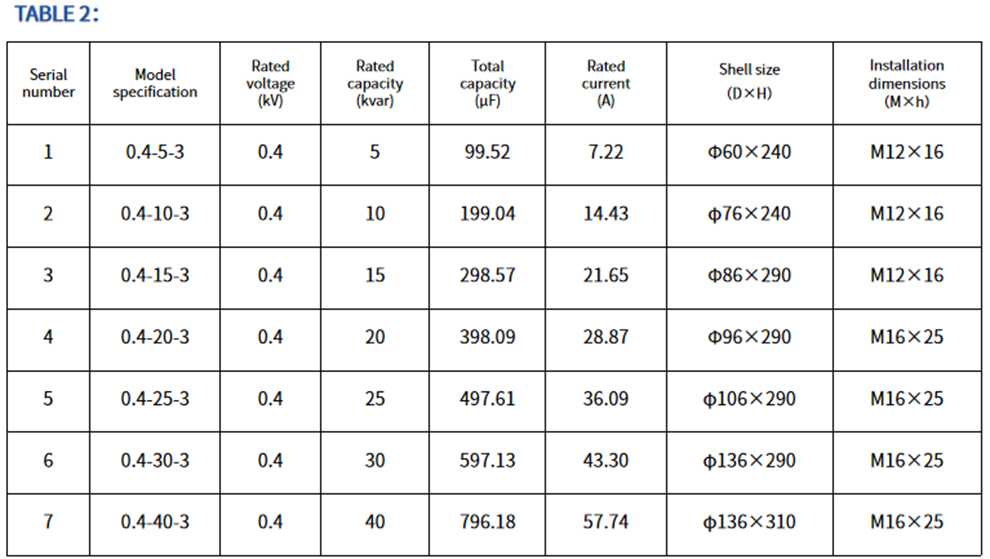

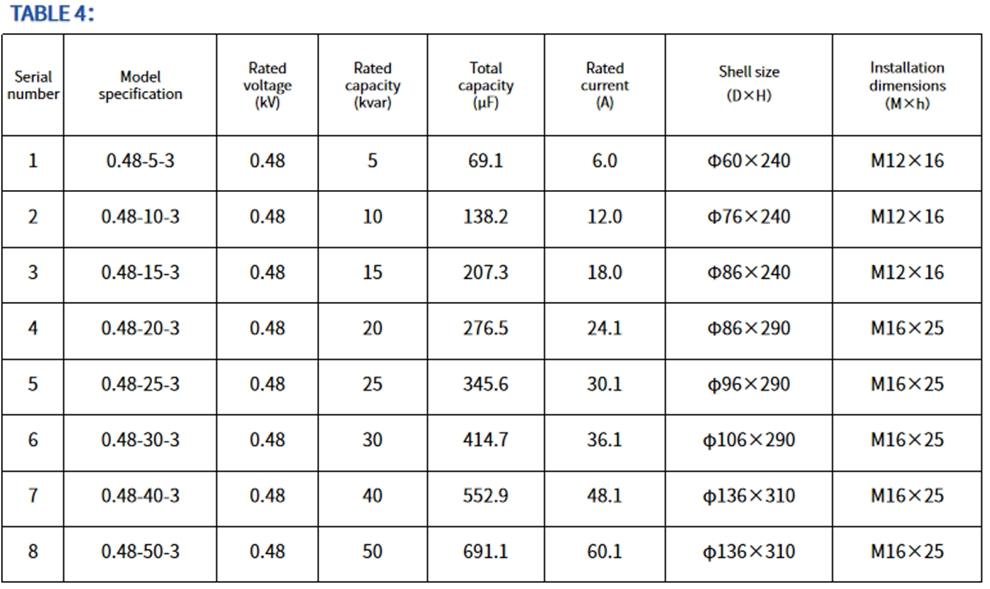

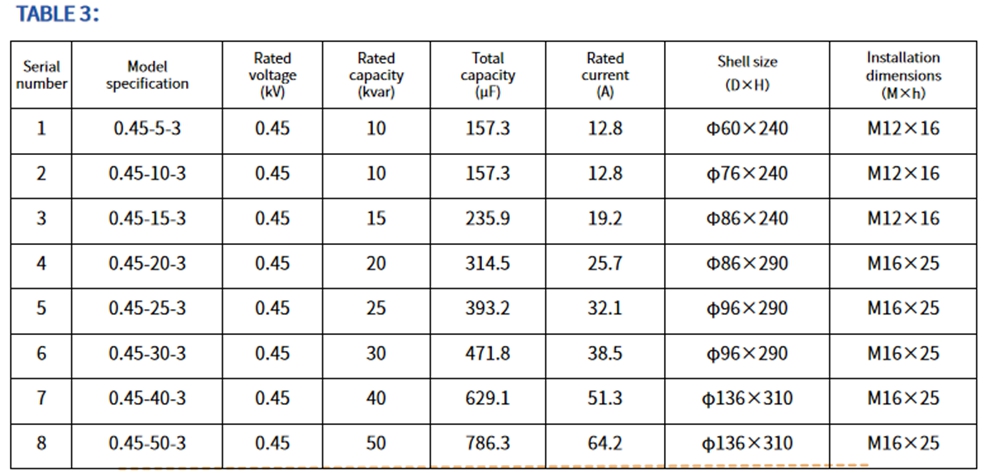

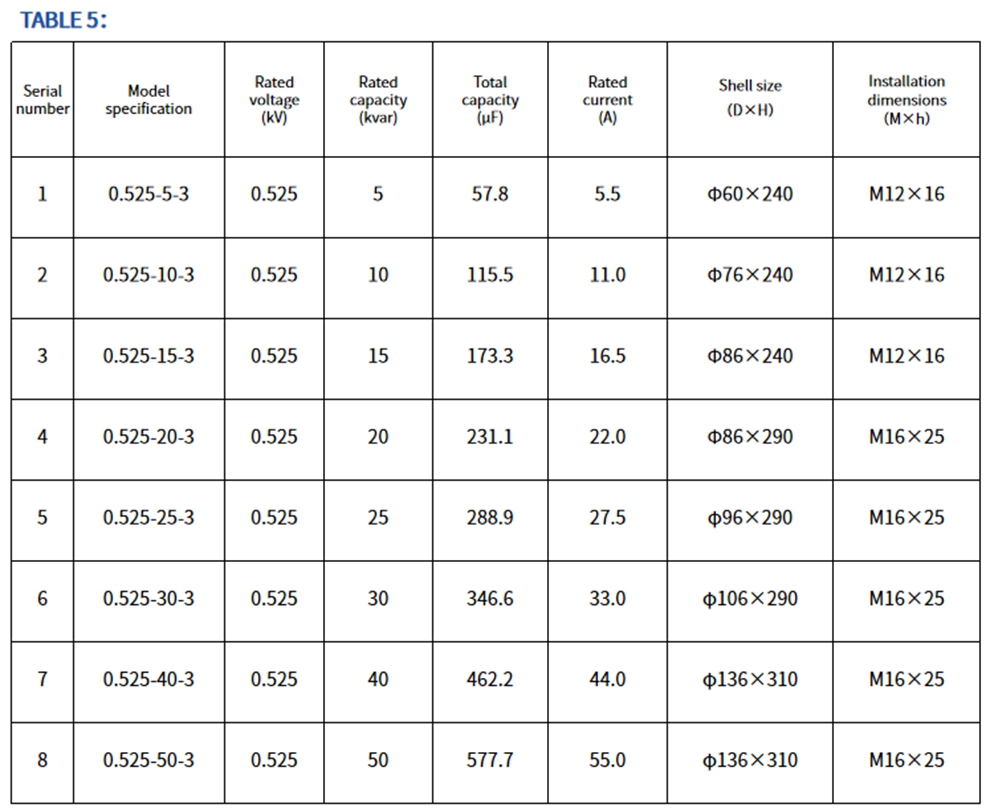

Specifications
Notes:
1. The dimensions of single-phase products are the same as those of three-phase products of the same specifications.
2. We can customize products of other specifications. Please contact us for special requirements.
3. Product dimensions are for reference only. Please refer to the actual product for details.

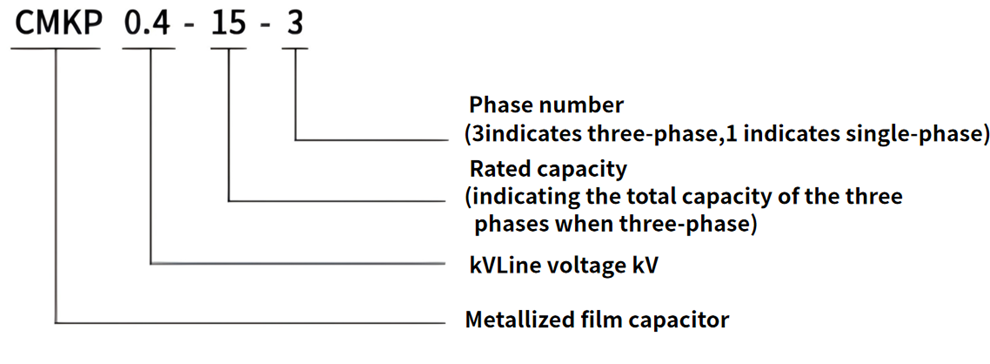

Model and meaning
